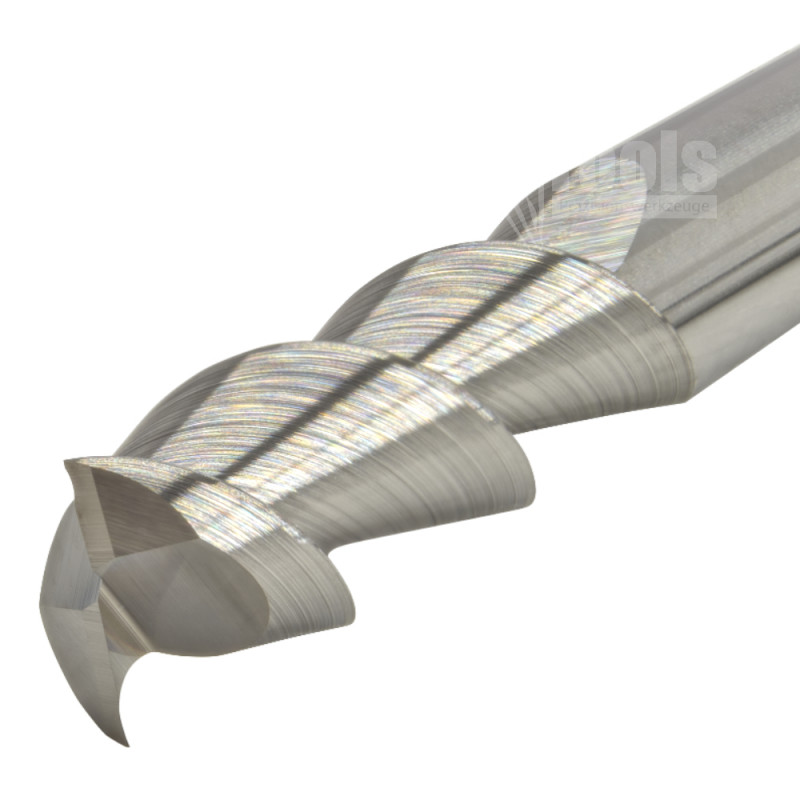

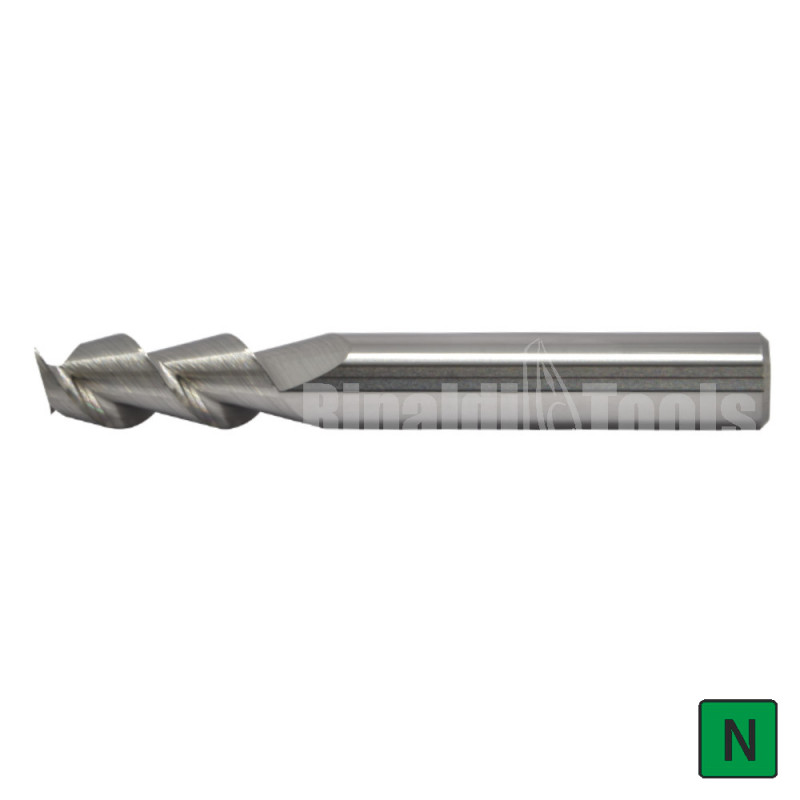

Solid Carbide End Mill ALU 2 Flutes

€8.50
Tax excluded
Diameter
Quantity

Mill Typ Solid Carbide End mill  ALU
Spiral Angle 55°
Material NE-Metalle
Lenght Standard Lenght
Shaft Cylindrical Shaft
Flutes 2
Coating RT30K: Uncoated K30 carbide substrate for
machining steel, cast iron and non-ferrous metals
Packaging unit 1 Pc

 Eckfräsen



- 2 flute solid carbideEnd Mill ALU
- cutting across the middle

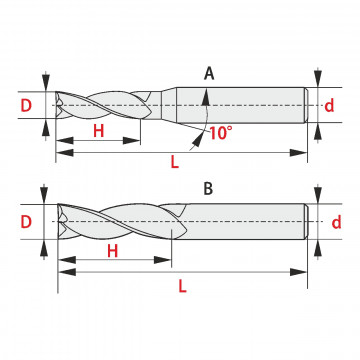

Art. Nr. D d(h6) H L Teeths Geometry
AF-Z2-D1.0 RT30K 2551521 1 4 3 50 2 A
AF-Z2-D1.5 RT30K 2551522 1,5 4 4 50 2 A
AF-Z2-D2.0 RT30K 2551523 2 4 6 50 2 A
AF-Z2-D2.5 RT30K 2551524 2,5 4 7 50 2 A
AF-Z2-D3.0 RT30K 2551525 3 6 9 50 2 A
AF-Z2-D4.0 RT30K 2551526 4 6 12 50 2 A
AF-Z2-D5.0 RT30K 2551527 5 6 15 50 2 A
AF-Z2-D6.0 RT30K 2551528 6 6 18 60 2 B
AF-Z2-D8.0 RT30K 2551529 8 8 20 60 2 B
AF-Z2-D10.0 RT30K 2551530 10 10 30 75 2 B
AF-Z2-D12.0 RT30K 2551531 12 12 32 75 2 B
AF-Z2-D16.0 RT30K 2551532 16 16 45 100 2 B
AF-Z2-D20.0 RT30K 2551533 20 20 45 100 2 B

Rinaldi-Tools
2551521

Data sheet

Materials
NF-Metals
Solid carbide Mills
End Mill
