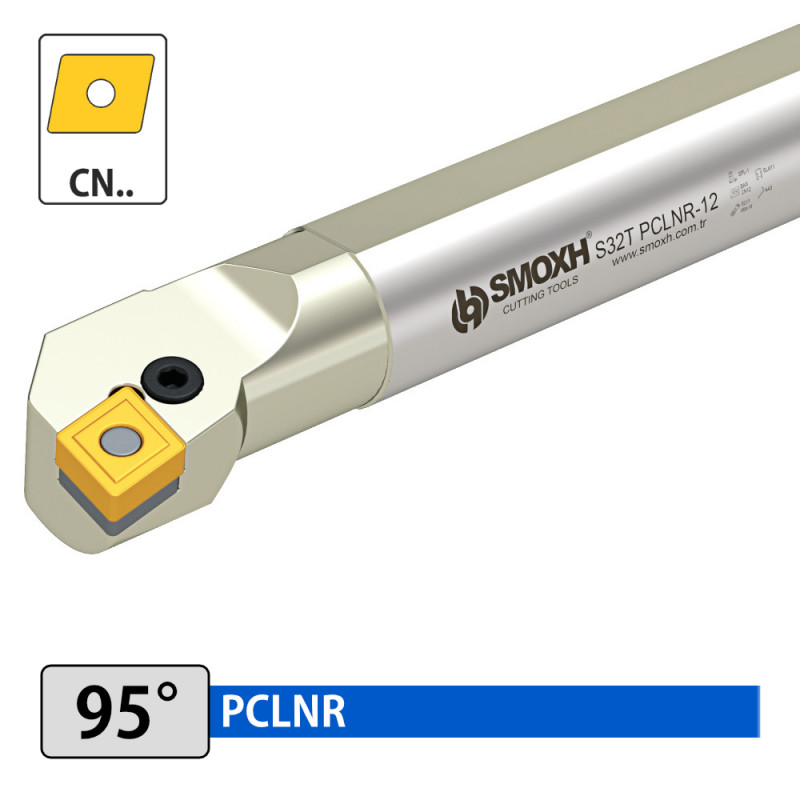

Internal Tool Holder - PCLNR/L (95°)
€57.50
Tax excluded
| Boring Bar | SPCLNR/L |
| Cutting Angle | 95° |
| Insert | CN.. |

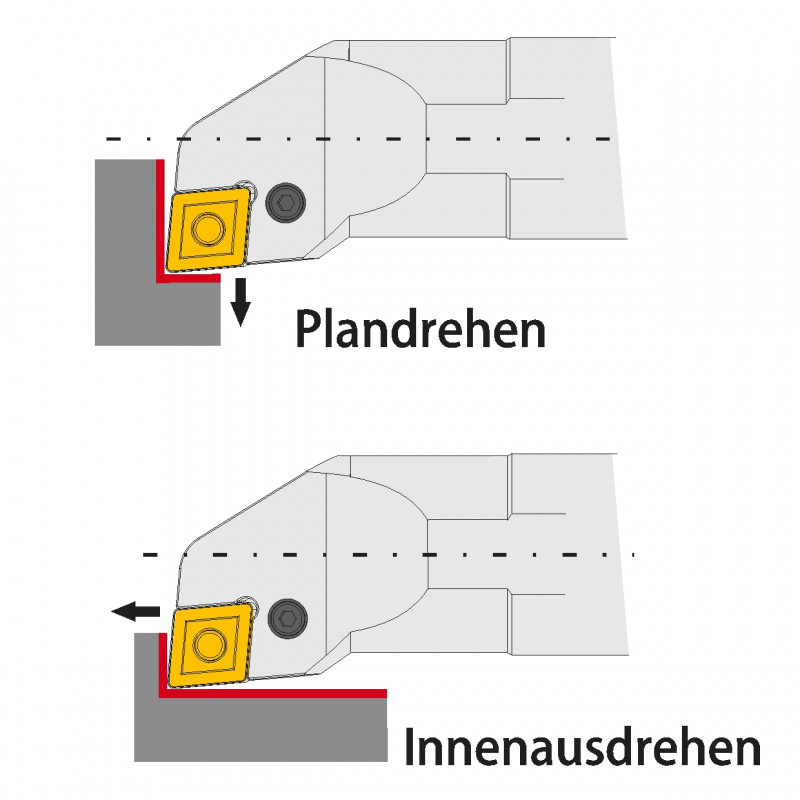

| Main application | Longitudinal turning, Facing |
| Clamping | Pin Lock |
| Cooling | Without Cooling Holes |
| Packaging unit | 1 Pc. |

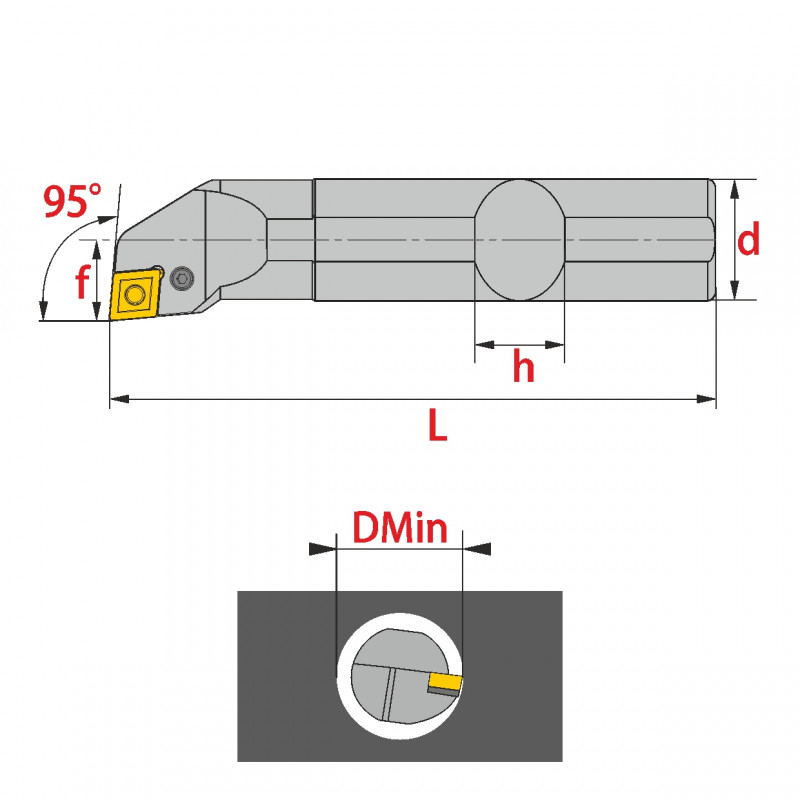

| Art. Nr. | d | h | L | f | Dmin | Insert | Shim | Shim Spring | Lever | Lever Screw | |
| S25S PCLNR 12 | SM05938 | 25 | 23 | 250 | 17 | ≥32 | CNM. 12.. | BAX -CN12 | SLAY1 | SPL1 | SLV1 M8x20 |
| S25S PCLNL 12 | SM05945 | 25 | 23 | 250 | 17 | ≥32 | CNM. 12.. | BAX -CN12 | SLAY1 | SPL1 | SLV1 M8x20 |
| S32T PCLNR 12 | SM05952 | 32 | 30 | 300 | 22 | ≥40 | CNM. 12.. | BAX -CN12 | SLAY1 | SPL1 | SLV1 M8x20 |
| S32T PCLNL 12 | SM05969 | 32 | 30 | 300 | 22 | ≥40 | CNM. 12.. | BAX -CN12 | SLAY1 | SPL1 | SLV1 M8x20 |
| S40U PCLNR 12 | SM05976 | 40 | 37 | 350 | 27 | ≥50 | CNM. 12.. | BAX -CN12 | SLAY1 | SPL1 | SLV1 M8x20 |
| S40U PCLNL 12 | SM05983 | 40 | 37 | 350 | 27 | ≥50 | CNM. 12.. | BAX -CN12 | SLAY1 | SPL1 | SLV1 M8x20 |
| S40U PCLNR 16 | SM06010 | 40 | 37 | 350 | 27 | ≥50 | CNM. 16.. | BAX -CN16 | SLAY2 | SPL2 | SLV2 M8x24 |
| S40U PCLNL 16 | SM06027 | 40 | 37 | 350 | 27 | ≥50 | CNM. 16.. | BAX -CN16 | SLAY2 | SPL2 | SLV2 M8x24 |
| Boring Bar | SPCLNR/L |
| Cutting Angle | 95° |
| Insert | CN.. |
| Main application | Longitudinal turning, Facing |
| Clamping | Pin Lock |
| Cooling | Without Cooling Holes |
| Packaging unit | 1 Pc. |
| d | h | L | f | Dmin | Insert | |
| S25S PCLNR/L 12 | 25 | 23 | 250 | 17 | ≥32 | CN.. 12.. |
| S32T PCLNR/L 12 | 32 | 30 | 300 | 22 | ≥40 | CN.. 12.. |
| S40U PCLNR/L 12 | 40 | 37 | 350 | 27 | ≥50 | CN.. 12.. |
| S40U PCLNR/L 16 | 40 | 37 | 350 | 27 | ≥50 | CN.. 16.. |
Matching articles
Indexable insert - CNMG...-KC RT150K
Price
ab €4.40
Availability: 2147483587 In Stock
| Shape | CNMG |
| Processing | Medium |
| Workpiece Material | Cast Iron |
| Grade | RT150K: CVD-coated K10-K20 carbide for cast machining |
| Packaging unit | 10 Pc. |
| r | L | I.C | S | d | |
| CNMG 120404-KC RT150K | 0,4 | 12,9 | 12,7 | 4,76 | 5,16 |
| CNMG 120408-KC RT150K | 0,8 | 12,9 | 12,7 | 4,76 | 5,16 |
| CNMG 120412-KC RT150K | 1,2 | 12,9 | 12,7 | 4,76 | 5,16 |
Indexable CBN-Insert - CNGA 1204..-2N RTC20T
Price
ab €29.50
Availability: 2147483637 In Stock
| Shape | CNGA |
| Scope of application | Hard turning |
| Cutting edges | 2 |
| Grade | RTC20T : TIN-coated CBN for full to lightly interrupted cuts in hardened steels |
| Packaging unit | 2 Pc |
| I.C. | S | r | d | L | |
| CNGA 120404-2N RTC20T | 12,7 | 4,76 | 0,4 | 5,16 | 2,2 |
| CNGA 120408-2N RTC20T | 12,7 | 4,76 | 0,8 | 5,16 | 2,2 |
Indexable insert - CNGG...-SF RT110S
Price
ab €5.80
Availability: 2147483647 In Stock
| Shape | CNGG |
| Processing | Finish |
| Workpiece Material | Special Materials |
| Grade | RT110S: PVD-TialSin coated S10 carbide for special materials |
| Packaging unit | 10 Pc. |
| r | L | I.C. | S | d | |
| CNGG 120404-SF RT110S | 0,4 | 12 | 12,7 | 4,76 | 5,16 |
| CNGG 120408-SF RT110S | 0,8 | 12 | 12,7 | 4,76 | 5,16 |
Indexable insert - CNMG...-SM RT110S
Price
ab €4.90
Availability: 2147483567 In Stock
| Shape | CNMG |
| Processing | Mittel |
| Workpiece Material | Special Materials |
| Grade | RT110S: PVD-TialSin coated S10 carbide for special materials |
| Packaging unit | 10 Pc. |
| r | L | I.C. | S | d | |
| CNMG 120408-SM RT110S | 0,8 | 12 | 12,7 | 4,76 | 5,16 |
| CNMG 120412-SM RT110S | 1,2 | 12 | 12,7 | 4,76 | 5,16 |
Indexable insert - CNMG...-SR RT110S
Price
ab €4.90
Availability: 2147483487 In Stock
| Shape | CNMG |
| Processing | Roughing |
| Workpiece Material | Special Materials |
| Grade | RT110S: PVD-TialSin coated S10 carbide for special materials |
| Packaging unit | 10 Pc. |
| r | L | I.C. | S | d | |
| CNMG 120408-SR RT110S | 0,8 | 12 | 12,7 | 4,76 | 5,16 |
| CNMG 120412-SR RT110S | 1,2 | 12 | 12,7 | 4,76 | 5,16 |
Indexable insert - CNMG...-MR RT255M
Price
ab €4.60
Availability: 2147482897 In Stock
| Shape | CNMG |
| Processing | Roughing/Medium |
| Workpiece Material | Stainless Steel |
| Grade | RT255M: PVD coated M20-M30 carbide. Good choice for stainless steel |
| Packaging unit | 10 Pc. |
| Art. Nr. | r | L | I.C. | S | d | |
| CNMG 120408-MR RT255M | 1661531 | 0,8 | 12,9 | 12,7 | 4,76 | 5,16 |
| CNMG 120412-MR RT255M | 1661532 | 1,2 | 12,9 | 12,7 | 4,76 | 5,16 |
Indexable insert - CNMG...-FP RT150+/250+
Price
ab €3.90
Availability: 2147483537 In Stock
| Shape | CNMG |
| Processing | Finish |
| Workpiece Material | Steel |
| Grade | RT150+: CVD-coated 2-color coated P10-P20 carbide for steel |
| Packaging unit | 10 Pc. |
| r | L | I.C. | S | Scope of application | |
| CNMG 120404-FP RT150+ | 0,4 | 12,9 | 12,7 | 4,76 | Finishing |
| CNMG 120408-FP RT150+ | 0,8 | 12,9 | 12,7 | 4,76 | Finishing |
| CNMG 120408-FP RT250+ | 0,8 | 12,9 | 12,7 | 4,76 | Finishing |
Indexable insert - CNMG...-PM RT250+
Price
ab €3.90
Availability: 2147482517 In Stock
| Shape | CNMG |
| Processing | Medium |
| Workpiece Material | Steel |
| Grade | RT250+: CVD coated 2-color P20-P30 carbide grade for steel processing |
| Packaging unit | 10 Pc. |
| r | L | I.C. | S | Scope of application | |
| CNMG 120404-PM RT250+ | 0,4 | 12,9 | 12,7 | 4,76 | Medium |
| CNMG 120408-PM RT250+ | 0,8 | 12,9 | 12,7 | 4,76 | Medium |
| CNMG 120412-PM RT250+ | 1,2 | 12,9 | 12,7 | 4,76 | Medium |
Indexable insert - CNMG...-PR RT225+
Price
ab €4.40
Availability: 2147483297 In Stock
| Shape | CNMG |
| Processing | Roughing |
| Workpiece Material | Steel |
| Grade | RT225+: CVD coated 2-color P20 carbide the latest generation for general steel processing |
| Packaging unit | 10 Pc. |
| r | L | I.C. | S | Scope of application | |
| CNMG 120408-PR RT225+ | 0,8 | 12,9 | 12,7 | 4,76 | Roughing |
| CNMG 120412-PR RT225+ | 1,2 | 12,9 | 12,7 | 4,76 | Roughing |
| CNMG 120416-PR RT225+ | 1,6 | 12,9 | 12,7 | 4,76 | Roughing |
| CNMG 160608-PR RT225+ | 0,8 | 16,1 | 15,875 | 6,35 | Roughing |
| CNMG 160612-PR RT225+ | 1,2 | 16,1 | 15,875 | 6,35 | Roughing |
| CNMG 160616-PR RT225+ | 1,6 | 16,1 | 15,875 | 6,35 | Roughing |
| CNMG 160624-PR RT225+ | 2,4 | 16,1 | 15,875 | 6,35 | Roughing |
| CNMG 190612-PR RT225+ | 1,2 | 19,3 | 19,05 | 6,35 | Roughing |
| CNMG 190616-PR RT225+ | 1,6 | 19,3 | 19,05 | 6,35 | Roughing |
| CNMG 190624-PR RT225+ | 2,4 | 19,3 | 19,05 | 6,35 | Roughing |
16 other products in the same category:
Internal Tool Holder - SVXBR/L (52°)
Price
ab €40.80
Availability: 2147483645 In Stock
| Boring Bar | SVXBR/L |
| Cutting Angle | 52° |
| Insert | VB.. |
| Hauptanwendung | Back Boring |
| Clamping | Screw Clamping |
| Cooling | Without Cooling Holes |
| Packaging unit | 1 Pc. |
52° boring bar for Back Boring.
| d | h | L | f | Dmin | Wendeplatte | |
| S20R SVXBR-11 | 20 | 18 | 200 | 15 | ≥25 | VB. 1103.. |
| S20R SVXBL-11 | 20 | 18 | 200 | 15 | ≥25 | VB. 1103.. |

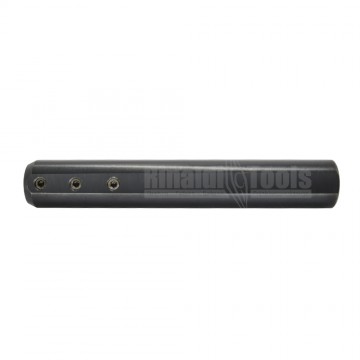

Sleeve
