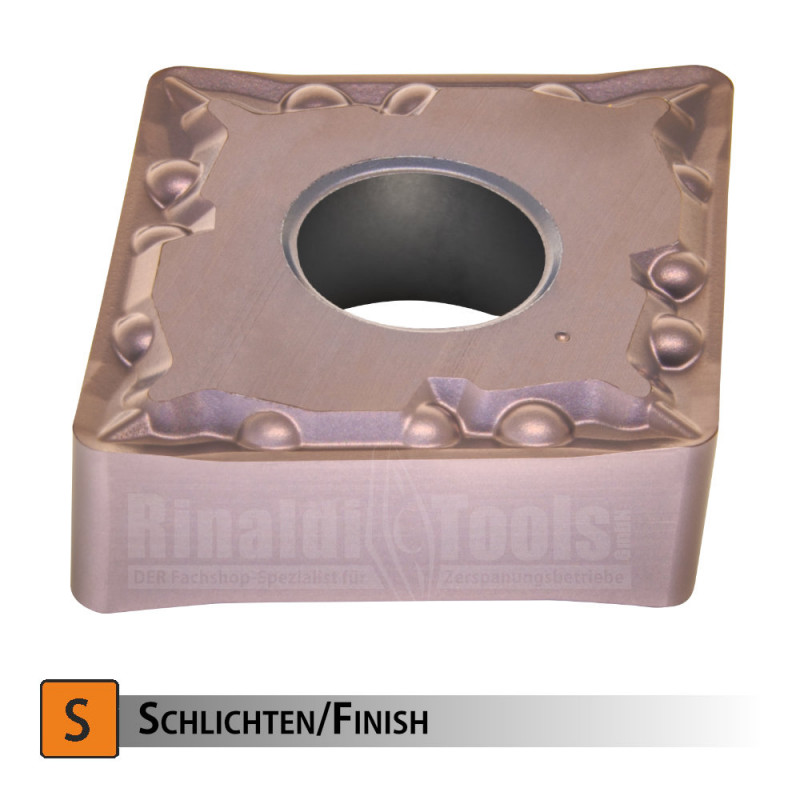

Indexable insert - CNGG...-SF RT110S

€5.80
Tax excluded
Insert size
Quantity

The minimum purchase order quantity for the product is 10.

Shape CNGG
Processing Finish
Workpiece Material Special Materials
Grade RT110S: PVD-TialSin coated S10 carbide for special materials
Packaging unit 10 Pc.

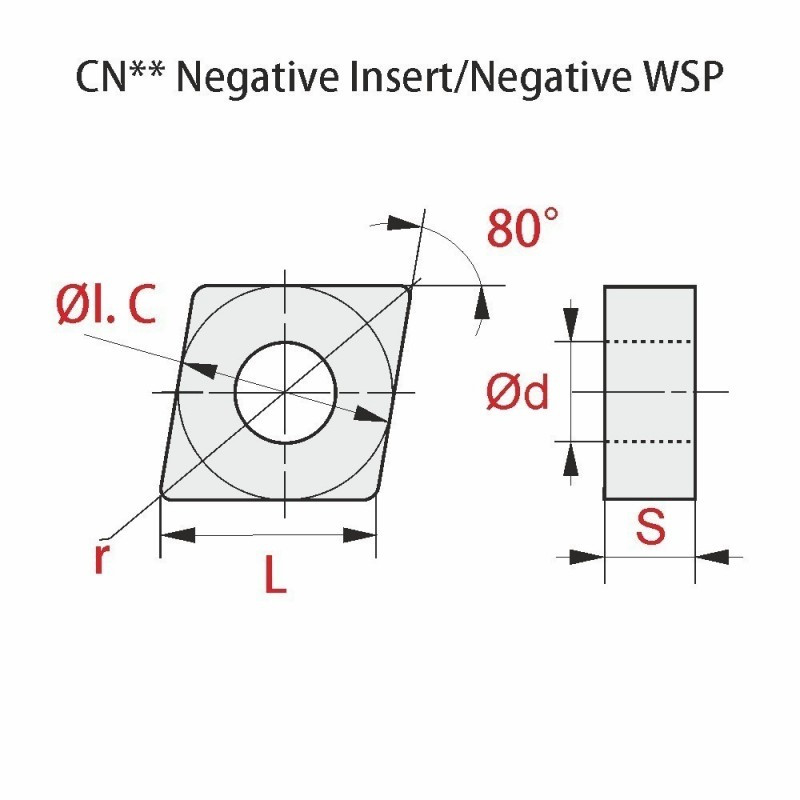

Item Nr. r L I.C. S d Cutting Data
CNGG 120404-SF RT110S 1661541 0,4 12 12,7 4,76 5,16 Vc= 30-90m/min fn=0,1-0,3mm
CNGG 120408-SF RT110S 1661542 0,8 12 12,7 4,76 5,16 Vc= 30-90m/min fn=0,1-0,3mm

Rinaldi-Tools
1661541

Data sheet

Materials
Special Materials
Bearbeitung
Finish
Inserts
CN..

16 other products in the same category:

Indexable insert -...
Rinaldi-Tools

Indexable insert - CNMG...-PM RT215+/225+

Price ab €4.40
Availability: 2147483647 In Stock
Shape CNMG
Processing Medium
Workpiece Material Steel
Grade RT250+: CVD coated 2-color P20-P30 carbide grade
for steel processing
RT225+: CVD coated 2-color P20 carbide
the latest generation for general steel processing
Packaging unit 10 Pc.

  r L I.C. S Scope of application
CNMG 120404-PM RT215+ 0,4 12,9 12,7 4,76 Medium
CNMG 120408-PM RT215+ 0,8 12,9 12,7 4,76 Medium
CNMG 120412-PM RT215+ 1,2 12,9 12,7 4,76 Medium
CNMG 120416-PM RT215+ 1,6 12,9 12,7 4,76 Medium
CNMG 160608-PM RT215+ 0,8 16,1 15,875 6,35 Medium
CNMG 160612-PM RT215+ 1,2 16,1 15,875 6,35 Medium
CNMG 160616-PM RT215+ 1,6 16,1 15,875 6,35 Medium
CNMG 190608-PM RT215+ 0,8 19,3 19,05 6,35 Medium
CNMG 190612-PM RT215+ 1,2 19,3 19,05 6,35 Medium
CNMG 190616-PM RT215+ 1,6 19,3 19,05 6,35 Medium
CNMG 120404-PM RT225+ 0,4 12,9 12,7 4,76 Medium
CNMG 120408-PM RT225+ 0,8 12,9 12,7 4,76 Medium
CNMG 120412-PM RT225+ 1,2 12,9 12,7 4,76 Medium
CNMG 120416-PM RT225+ 1,6 12,9 12,7 4,76 Medium
CNMG 160608-PM RT225+ 0,8 16,1 15,875 6,35 Medium
CNMG 160612-PM RT225+ 1,2 16,1 15,875 6,35 Medium
CNMG 160616-PM RT225+ 1,6 16,1 15,875 6,35 Medium
CNMG 190608-PM RT225+ 0,8 19,3 19,05 6,35 Medium
CNMG 190612-PM RT225+ 1,2 19,3 19,05 6,35 Medium
CNMG 190616-PM RT225+ 1,6 19,3 19,05 6,35 Medium

Indexable insert -...
Rinaldi-Tools

Indexable insert - CNMG...-PM RT250+

Price ab €3.90
Availability: 2147482517 In Stock
Shape CNMG
Processing Medium
Workpiece Material Steel
Grade RT250+: CVD coated 2-color P20-P30 carbide grade
for steel processing
Packaging unit 10 Pc.

r L I.C. S Scope of application
CNMG 120404-PM RT250+ 0,4 12,9 12,7 4,76 Medium
CNMG 120408-PM RT250+ 0,8 12,9 12,7 4,76 Medium
CNMG 120412-PM RT250+ 1,2 12,9 12,7 4,76 Medium

Indexable insert -...
Rinaldi-Tools

Indexable insert - TNMG...-KC RT150K

Price ab €3.85
Availability: 2147483647 In Stock
Shape TNMG
Processing Medium
Workpiece Material Cast Iron
Grade RT150K: CVD-coated K10-K20 carbide for cast machining
Packaging unit 10 Pc.

  r L I.C S d
TNMG 160404-KC RT150K 0,4 16,5 9,525 4,76 3,81
TNMG 160408-KC RT150K 0,8 16,5 9,525 4,76 3,81
TNMG 160412-KC RT150K 1,2 16,5 9,525 4,76 3,81
Indexable insert -...

Indexable insert - DNMG...-KC RT150K

Price ab €5.90
Availability: 2147483637 In Stock
Plate Shape DNMG
Processing Medium
Workpiece Material Cast Iron
Grade RT150K: CVD-coated K10-K20 carbide for cast machining
Packaging unit 10 Pc.



  r L I.C S d
DNMG 150608-KC RT150K 0,8 15,5 12,7 6,35 5,16
DNMG 150612-KC RT150K 1,2 15,5 12,7 6,35 5,16

Indexable insert -...
Rinaldi-Tools

Indexable insert - VNMG...-SF RTC+

Price ab €6.70
Availability: 2147483647 In Stock
Plate Shape VNMG
Processing Finish
Workpiece Material Steel and Stainless Steel
Grade RTC+: PVD coated P05-P15 Cermet grade for finishing of steel and stainless steel
Packaging unit 10 Pc.

r L I.C S d
VNMG 160404-SF RTC+ 0,4 16,6 9,525 4,76 3,81
VNMG 160408-SF RTC+ 0,8 16,6 9,525 4,76 3,81
Wendeschneidplatte -...
Rinaldi-Tools

Wendeschneidplatte - CNMG...-MM RT250M

Price ab €3.90
Availability: 2147483447 In Stock
Shape CNMG
Processing Medium
Workpiece Material Stainless Steel
Grade RT250M = PVD coated M20-M30 carbide.
1st choice for stainless steel
Packaging unit 10 Pc.

r L I.C. S d
CNMG 120404-MM RT250M 0,4 12,9 12,7 4,76 5,16
CNMG 120408-MM RT250M 0,8 12,9 12,7 4,76 5,16
CNMG 120412-MM RT250M 1,2 12,9 12,7 4,76 5,16



Indexable insert -...
Rinaldi-Tools

Indexable insert - DNMG...-SF RTC+

Price ab €4.70
Availability: 2147483647 In Stock
Shape DNMG
Processing Finish
Workpiece Material Steel and Stainless Steel
Grade RTC+: PVD coated P05-P15 Cermet grade for finishing of steel and stainless steel
Packaging unit 10 Pc.

r L I.C S d
DNMG 110404-SF RTC+ 0,4 11,6 9,525 4,76 3,81
DNMG 150604-SF RTC+ 0,4 15,5 12,7 6,35 5,16
DNMG 150608-SF RTC+ 0,8 15,5 12,7 6,35 5,16
Indexable insert - TNMG...
Rinaldi-Tools

Indexable insert - TNMG ...-FE RT305

Price ab €3.85
Availability: 2147483467 In Stock
Shape TNMG
Processing Finish
Workpiece Material Stainless Steel
Grade RT305: PVD grade M20-M30 for stainless steel with the most modern coating
Packaging unit 10 Pc.

  r L I.C S d
TNMG 160404-FE RT305 0,4 16,5 9,525 4,76 3,81
TNMG 160408-FE RT305 0,8 16,5 9,525 4,76 3,81
TNMG 160412-FE RT305 1,2 16,5 9,525 4,76 3,81
Indexable insert -...
Rinaldi-Tools

Indexable insert - TNMG...-ME RT305

Price ab €3.85
Availability: 2147483627 In Stock
Shape TNMG
Processing Medium
Workpiece Material Stainless Steel
Coating RT305: PVD grade M20-M30 for stainless steel with the most modern coating
Packaging unit 10 Pc.

r L I.C S d
TNMG 160408-ME RT305 0,8 16,5 9,525 4,76 3,81
TNMG 160412-ME RT305 1,2 16,5 9,525 4,76 3,81
Indexable insert -...
Rinaldi-Tools

Indexable insert - VNMG...-FE RT305

Price ab €6.20
Availability: 2147483577 In Stock
Shape VNMG
Processing Finish
Workpiece Material Stainless Steel
Grade RT305: PVD grade M20-M30 for stainless steel with the most modern coating
Packaging unit 10 Pc.

r L I.C S d
VNMG 160404-FE RT305 0,4 16,6 9,525 4,76 3,81
VNMG 160408-FE RT305 0,8 16,6 9,525 4,76 3,81
Indexable insert -...
Rinaldi-Tools

Indexable insert - VNMG...-PM RT250+

Price ab €6.50
Availability: 2147483557 In Stock
Shape VNMG
Processing Medium
Workpiece Material Steel
Grade RT250+: CVD coated 2 color coated P20-P30 carbide for steel
Packaging unit 10 Pc.

r L I.C S d
VNMG 160404-PM RT250+ 0,4 16,6 9,525 4,76 3,81
VNMG 160408-PM RT250+ 0,8 16,6 9,525 4,76 3,81
Indexable insert -...
Rinaldi-Tools

Indexable insert - SNMG...-MR RT255M

Price ab €4.80
Availability: 2147483627 In Stock
Shape SNMG
Processing Roughing
Workpiece Material Stainless Steel
Grade RT255M: PVD coated M20-M30 carbide.
Good choice for stainless steel
Packaging unit 10 Pc.

  r L I.C S d
SNMG 120404-MR RT255M 0,4 12,7 12,7 4,76 5,16
SNMG 120408-MR RT255M 0,8 12,7 12,7 4,76 5,16
SNMG 120412-MR RT255M 1,2 12,7 12,7 4,76 5,16
Indexable insert -...
Rinaldi-Tools

Indexable insert - SNMG...-ME RT305

Price ab €4.20
Availability: 2147483537 In Stock
Shape SNMG
Processing Medium
Workpiece Material Stainless Steel
Grade RT305: PVD grade M20-M30 for stainless steel with the most modern coating
Packaging unit 10 Pc.

  r L I.C S d
SNMG 120408-ME RT305 0,8 12,7 12,7 4,76 5,16
SNMG 120412-ME RT305 1,2 12,7 12,7 4,76 5,16
Indexable insert -...
Rinaldi-Tools

Indexable insert - CNMG...-SF RTC+

Price ab €3.70
Availability: 2147483647 In Stock
Shape CNMG
Processing Finish
Workpiece Material Steel and Stainless Steel
Grade RTC+: PVD coated P05-P15 Cermet grade for finishing of steel and stainless steel
Packaging unit 10 Pc.

  r L I.C. S Scope of application
CNMG 090304-SF RTC+ 0,4 9,7 9,525 3,18 Steel and Stainless Steel
CNMG 120404-SF RTC+ 0,4 12,9 12,7 4,76 Steel and Stainless Steel
CNMG 120408-SF RTC+ 0,8 12,9 12,7 4,76 Steel and Stainless Steel

Indexable insert -...
Rinaldi-Tools

Indexable insert - CNMG...-SM RT110S

Price ab €4.90
Availability: 2147483567 In Stock
Shape CNMG
Processing Mittel
Workpiece Material Special Materials
Grade RT110S:
PVD-TialSin coated S10 carbide for special materials
Packaging unit 10 Pc.

r L I.C. S d
CNMG 120408-SM RT110S 0,8 12 12,7 4,76 5,16
CNMG 120412-SM RT110S 1,2 12 12,7 4,76 5,16
