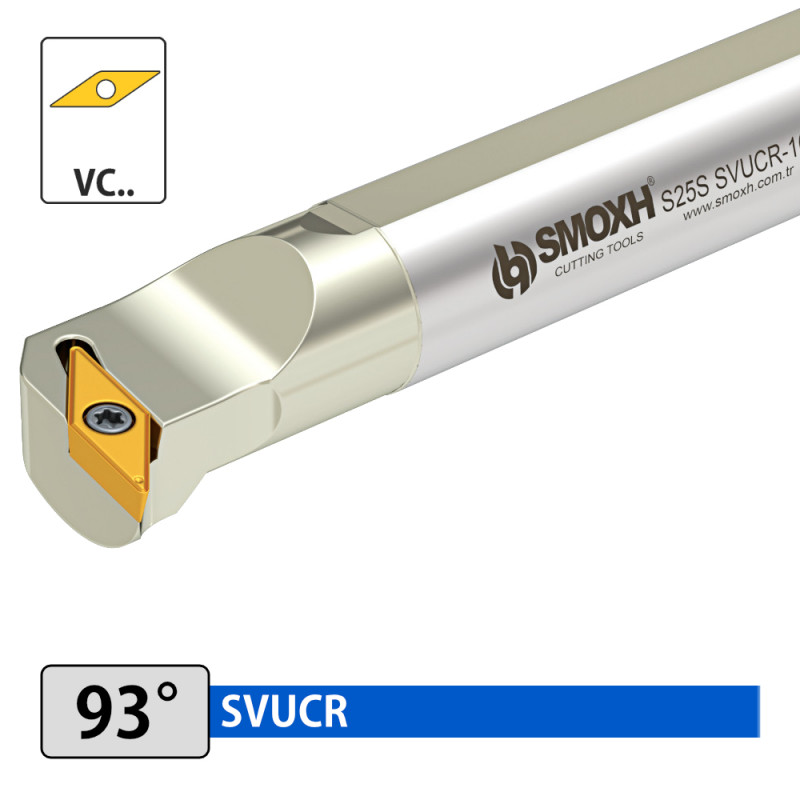

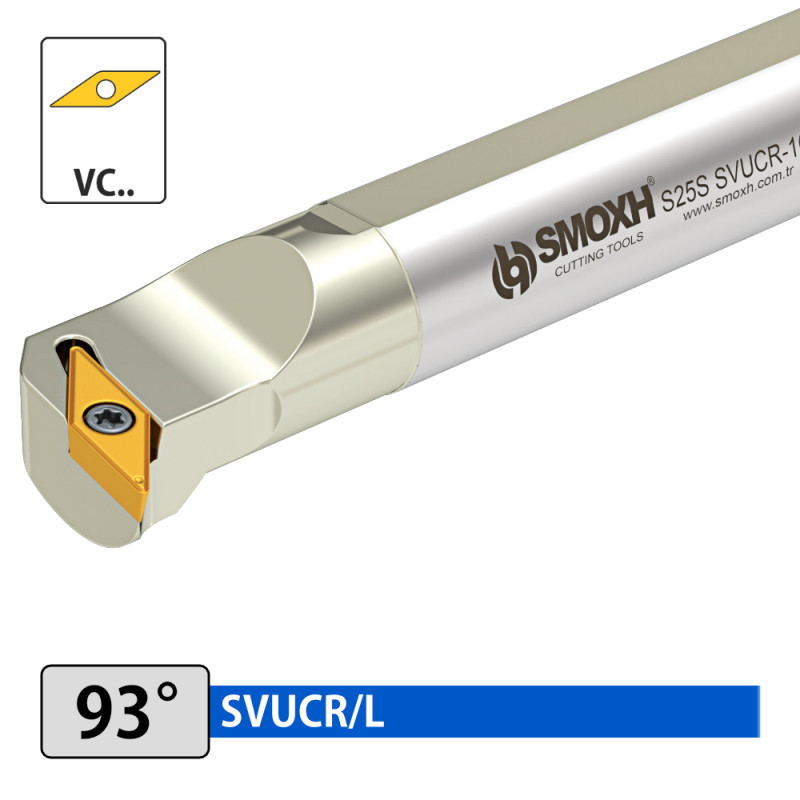

Internal Tool Holder - SVUCR/L (93°)
€45.00
Tax excluded
| Boring Bar | SVUCR/L |
| Cutting Angle | 93° |
| Insert | VC.. |

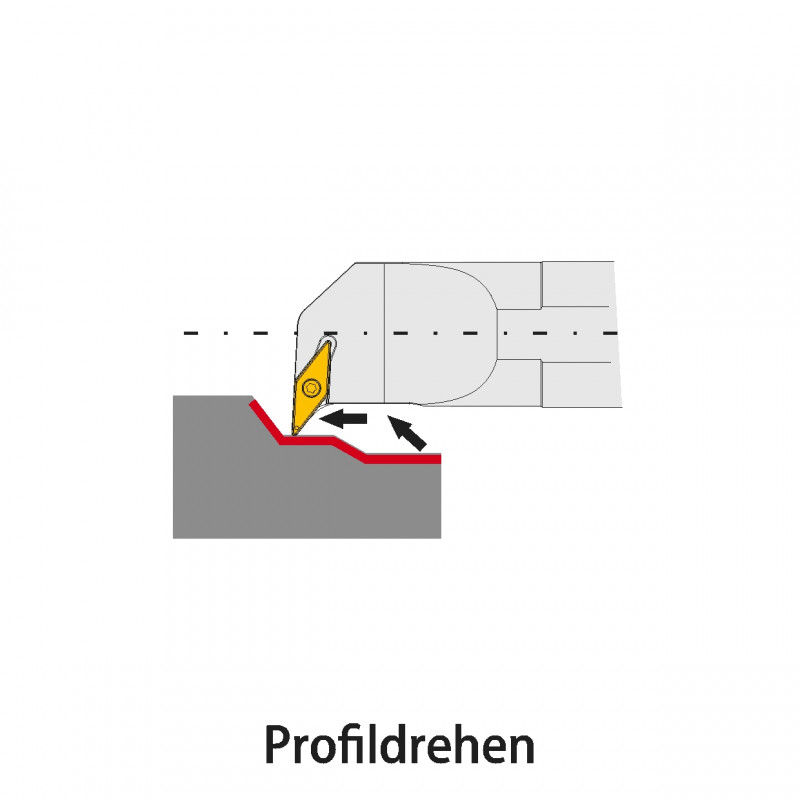

| Main application | Profile turning |
| Clamping | Screw Clamping |
| Cooling | Without Cooling Holes |
| Packaging unit | 1 Pc. |

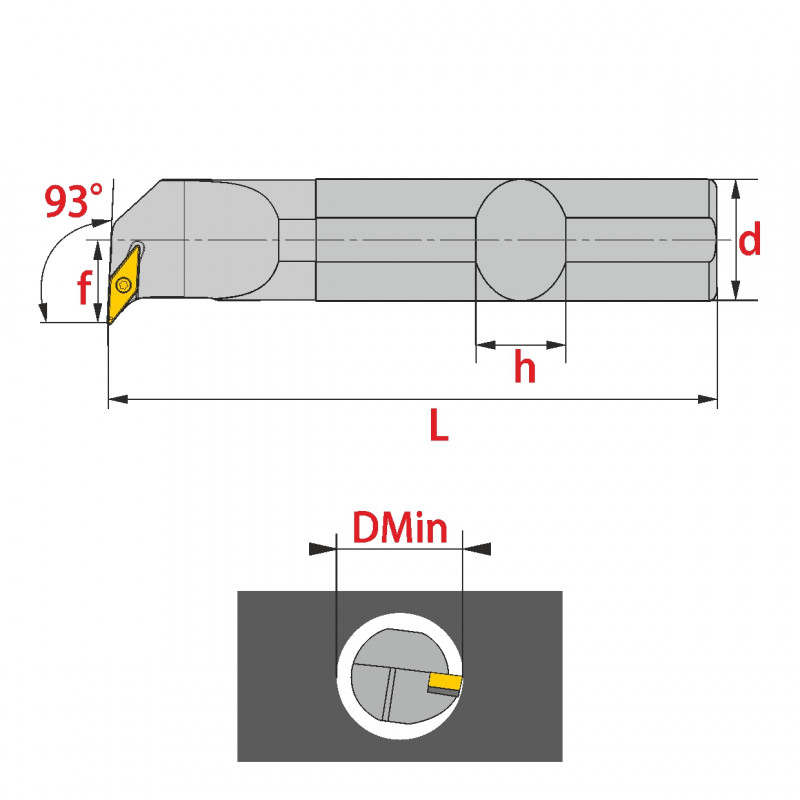

| Art. Nr. | d | h | L | f | Dmin | Insert | Screw | Shim | Shim-Screw | |
| S16P SVUCR-11 | SM08373 | 16 | 15 | 170 | 13 | ≥21 | VCM./VCG. 1103.. | SSV M2,5x6 | - | - |
| S16P SVUCL-11 | SM08632 | 16 | 15 | 170 | 13 | ≥21 | VCM./VCG. 1103.. | SSV M2,5x6 | - | - |
| S20R SVUCR-11 | SM08656 | 20 | 18 | 200 | 15 | ≥25 | VCM./VCG. 1103.. | SSV M2,5x6 | - | - |
| S20R SVUCL-11 | SM08663 | 20 | 18 | 200 | 15 | ≥25 | VCM./VCG. 1103.. | SSV M2,5x6 | - | - |
| S25S SVUCR-16 | SM08717 | 25 | 23 | 250 | 19,5 | ≥32 | VCM./VCG. 1604.. | SSV M3,5x10 | BAX-VC16 | SBV5 M5x0,5 A3,5x9 |
| S25S SVUCL-16 | SM08724 | 25 | 23 | 250 | 19,5 | ≥32 | VCM./VCG. 1604.. | SSV M3,5x10 | BAX-VC16 | SBV5 M5x0,5 A3,5x9 |
| S32T SVUCR-16 | SM08731 | 32 | 30 | 300 | 24 | ≥40 | VCM./VCG. 1604.. | SSV M3,5x14 | BAX-VC16 | SBV M5x0,5 A3,5x11 |
| S32T SVUCL-16 | SM08748 | 32 | 30 | 300 | 24 | ≥40 | VCM./VCG. 1604.. | SSV M3,5x14 | BAX-VC16 | SBV M5x0,5 A3,5x11 |
| S40U SVUCR-16 | SM08755 | 40 | 37 | 350 | 30 | ≥50 | VCM./VCG. 1604.. | SSV M3,5x14 | BAX-VC16 | SBV M5x0,5 A3,5x11 |
| S40U SVUCL-16 | SM08762 | 40 | 37 | 350 | 30 | ≥50 | VCM./VCG. 1604.. | SSV M3,5x14 | BAX-VC16 | SBV M5x0,5 A3,5x11 |
SM08717
Data sheet
- Type of clamping
- Screw Clamp
- Cooling Holes
- without cooling holes
- Inserts
- VC..
| Boring Bar | SVUCR/L |
| Cutting Angle | 93° |
| Insert | VC.. |
| Main application | Profile turning |
| Clamping | Screw Clamping |
| Cooling | Without Cooling Holes |
| Packaging unit | 1 Pc. |
| d | h | L | f | Dmin | Insert | |
| S16P SVUCR/L-11 | 16 | 15 | 170 | 13 | ≥21 | VCM./VCG. 1103.. |
| S20R SVUCR/L-11 | 20 | 18 | 200 | 15 | ≥25 | VCM./VCG. 1103.. |
| S25S SVUCR/L-16 | 25 | 23 | 250 | 19,5 | ≥32 | VCM./VCG. 1604.. |
| S32T SVUCR/L-16 | 32 | 30 | 300 | 24 | ≥40 | VCM./VCG. 1604.. |
| S40U SVUCR/L-16 | 40 | 37 | 350 | 30 | ≥50 | VCM./VCG. 1604.. |
