Internal Tool Holder - PCLNR/L (95°) with cooling holes
€66.00
Tax excluded
| Boring Bar | PCLNR/L |
| Cutting Angle | 95° |
| Insert | CN.. |
| Main application | Longitudinal turning, Facing |
| Clamping | Pin Lock |
| Cooling | With Cooling Holes |
| Packaging unit | 1 Pc. |

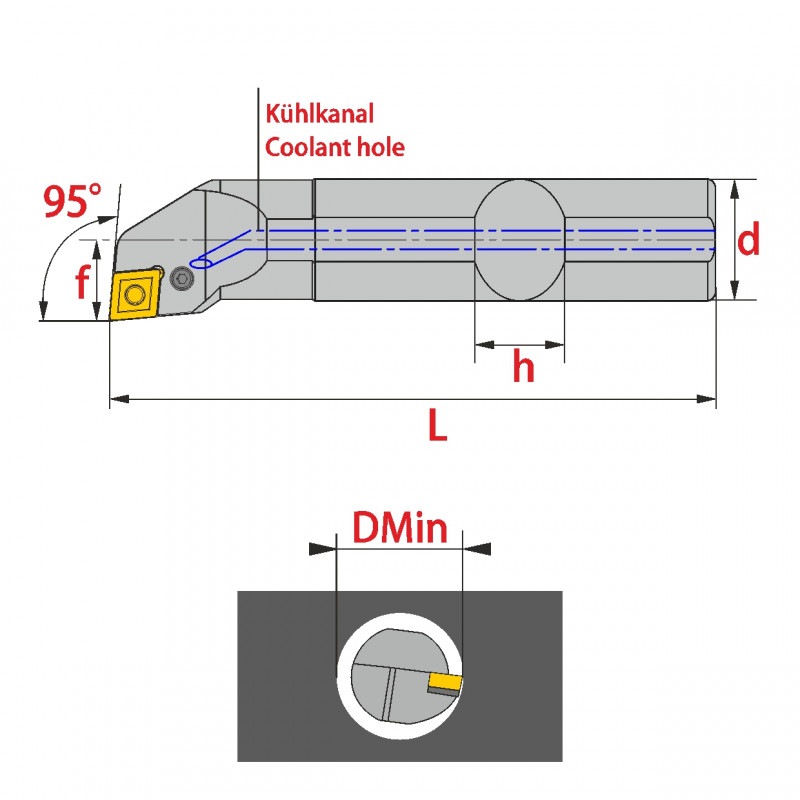

| Art. Nr. | d | h | L | f | Dmin | Insert | Shim | Shim Spring | Lever | Lever Screw | |
| A25R PCLNR 12 with cooling holes | SM40403 | 25 | 23 | 200 | 17 | ≥32 | CNM. 1204.. | BAX -CN12 | SLAY1 | SPL1 | SLV1 M8x20 |
| A25R PCLNL 12 with cooling holes | SM40410 | 25 | 23 | 200 | 17 | ≥32 | CNM. 1204.. | BAX -CN12 | SLAY1 | SPL1 | SLV1 M8x20 |
| A32S PCLNR 12 with cooling holes | SM40304 | 32 | 30 | 250 | 22 | ≥40 | CNM. 1204.. | BAX -CN12 | SLAY1 | SPL1 | SLV1 M8x20 |
| A32S PCLNL 12 with cooling holes | SM40311 | 32 | 30 | 250 | 22 | ≥40 | CNM. 1204.. | BAX -CN12 | SLAY1 | SPL1 | SLV1 M8x20 |
| Boring Bar | PCLNR/L |
| Cutting Angle | 95° |
| Insert | CN.. |
| Main application | Longitudinal turning, Facing |
| Clamping | Pin Lock |
| Cooling | With Cooling Holes |
| Packaging unit | 1 Pc. |
| d | h | L | f | Dmin | Insert | |
| A25R PCLNR/L-12 with cooling holes |
25 | 23 | 200 | 17 | ≥32 | CNM. 1204.. |
| A32S PCLNR/L-12 with cooling holes |
32 | 30 | 250 | 22 | ≥40 | CNM. 1204.. |
