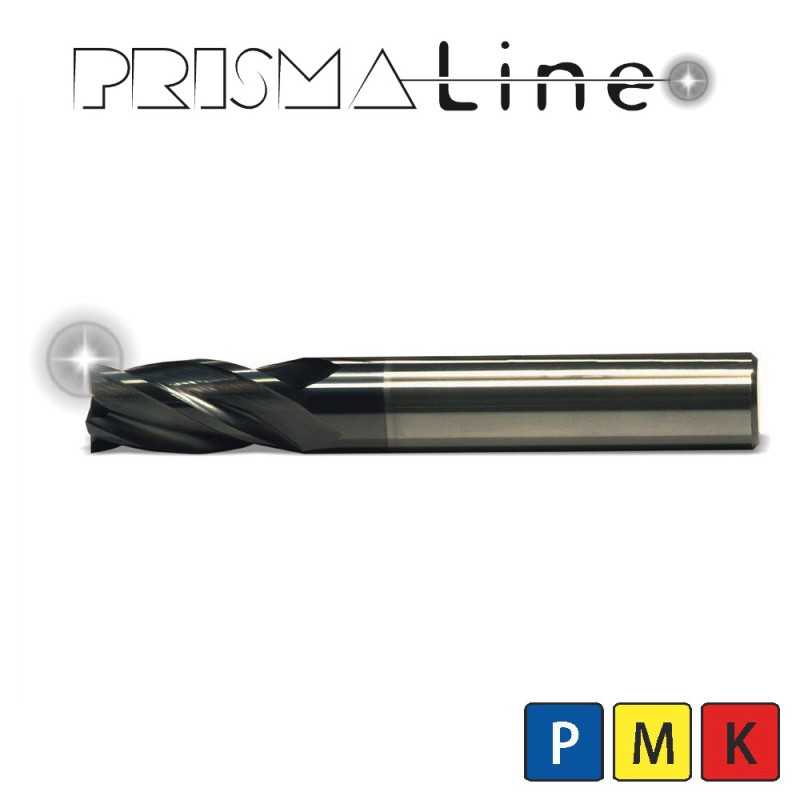

Solid Carbide End Mill

€9.80
Tax excluded
Diameter
Quantity

Mill Typ Solid Carbide End mill
Spiral Angle 38°
Material Steel, Stainless Steel, Cast Iron
Processing Finish
Lenght Standard Lenght
Shank Cylinder Shank
Teeth 4
Coating RT405: PVD-TIALN-coated high-performance grade
for solid carbide milling cutters
Packaging unit 1 Pc

  Eckfräsen



- 4 flute solid carbide cutter
- cutting across the middle
- TIALN-coated

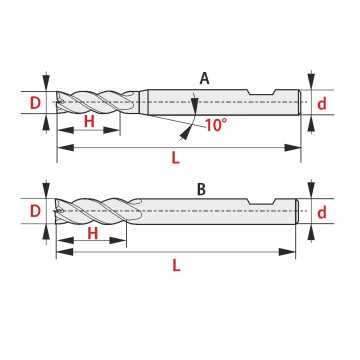

Art. Nr. D d(h6) H L Flute Geom.
SF-P-Z4-D2.0 RT405 P2552041 2 6 6 50 4 A
SF-P-Z4-D3.0 RT405
 P2552042 3 6 8 50 4 A
SF-P-Z4-D4.0 RT405
 P2552043 4 6 11 50 4 A
SF-P-Z4-D5.0 RT405
 P2552044 5 6 13 50 4 A
SF-P-Z4-D6.0 RT405
 P2552045 6 6 16 50 4 B
SF-P-Z4-D8.0 RT405
 P2552046 8 8 20 60 4 B
SF-P-Z4-D10.0 RT405
 P2552047 10 10 25 75 4 B
SF-P-Z4-D12.0 RT405
 P2552048 12 12 30 75 4 B
SF-P-Z4-D16.0 RT405
 P2552049 16 16 45 100 4 B

Rinaldi-Tools
P2552042

Data sheet

Materials
Cast Iron
Stainless Steel
Steel
Solid carbide Mills
End Mill
