SAMPLE of VCGT ...-ALZ RT100

€0.00
Tax excluded
Insert size
Quantity

So that you can convince yourself of the quality of this indexable insert, we offer you the opportunity to order a free sample insert once.

Packaging unit = 1 Pc.

RT100 = Uncoated K10-K15 carbide for ALU and plastics

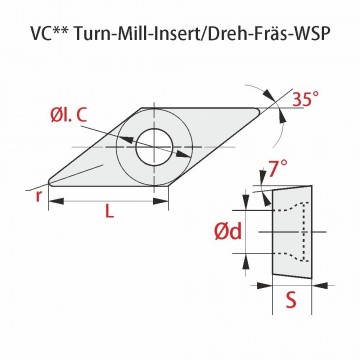

Art. Nr. r L I.C S d Scope of application Cutting data
VCGT 110302-ALZ RT100 M1771331 0,2 11 6,35 3,18 2,8 Aluminium/Plastic/NF-Materials Vc= 300-800m/min f=0,05-0,15 mm/U
VCGT 110304-ALZ RT100 M1771332 0,4 11 6,35 3,18 2,8 Aluminium/Plastic/NF-Materials Vc= 300-800m/min f=0,05-0,2 mm/U
VCGT 160402-ALZ RT100 M1771333 0,2 16,6 9,525 4,76 4,4 Aluminium/Plastic/NF-Materials Vc= 300-800m/min f=0,05-0,15 mm/U
VCGT 160404-ALZ RT100 M1771334 0,4 16,6 9,525 4,76 4,4 Aluminium/Plastic/NF-Materials Vc= 300-800m/min f=0,05-0,2 mm/U
VCGT 160408-ALZ RT100 M1771335 0,8 16,6 9,525 4,76 4,4 Aluminium/Plastic/NF-Materials Vc= 300-800m/min f=0,05-0,2 mm/U
VCGT 160412-ALZ RT100 M1771336 1,2 16,6 9,525 4,76 4,4 Aluminium/Plastic/NF-Materials Vc= 300-800m/min f=0,05-0,25 mm/U
VCGT 220530-ALZ RT100 M1771337 3 22 12,7 5,56 5,5 Aluminium/Plastic/NF-Materials Vc= 300-800m/min f=0,1-0,4 mm/U
Rinaldi-Tools
M1771331

Data sheet

Materials
Aluminium
NF-Metals
Plastic
Positive Turning Inserts
VCGT

Matching articles

External Tool Holder -...
SMOXH

External Tool Holder - SVJCR/L... (93°)

Price ab €39.00
Availability: 2147483641 In Stock
External Tool Holder SVJCR/L
Cutting Angle 93°
Insert VC.
Main application Profiling
Clamping Screw Clamp
Packaging unit 1 Pc.

ENDING 11 = VCMT / VCGT 1103...

ENDING 16 = VCMT / VCGT 1604...

  h=H B L f Insert
SVJCR 1616 H11 16 16 100 20 VCG./VCM. 11..
SVJCL 1616 H11 16 16 100 20 VCG./VCM. 11..
SVJCR 2020 K11 20 20 125 25 VCG./VCM. 11..
SVJCL 2020 K11 20 20 125 25 VCG./VCM. 11..
SVJCR 2020 K16 20 20 125 25 VCG./VCM. 16..
SVJCL 2020 K16 20 20 125 25 VCG./VCM. 16..
SVJCR 2525 M16 25 25 150 30 VCG./VCM. 16..
SVJCL 2525 M16 25 25 150 30 VCG./VCM. 16..
Internal Tool Holder -...
SMOXH

Internal Tool Holder - SVUCR/L (93°)

Price ab €45.00
Availability: 2147483639 In Stock
Boring Bar SVUCR/L
Cutting Angle 93°
Insert VC..
Main application Profile turning
Clamping Screw Clamping
Cooling Without Cooling Holes
Packaging unit 1 Pc.

d h L f Dmin Insert
S16P SVUCR/L-11 16 15 170 13 ≥21 VCM./VCG. 1103..
S20R SVUCR/L-11 20 18 200 15 ≥25 VCM./VCG. 1103..
S25S SVUCR/L-16 25 23 250 19,5 ≥32 VCM./VCG. 1604..
S32T SVUCR/L-16 32 30 300 24 ≥40 VCM./VCG. 1604..
S40U SVUCR/L-16 40 37 350 30 ≥50 VCM./VCG. 1604..

Shoulder Mill - TK90 VCGT
SMOXH

Shoulder Mill - TK90 VCGT

Price ab €53.00
Availability: 2147483634 In Stock
Mill typ Shoulder  Mill
Insert VC..
Packaging unit 1 Pc.

With cooling holes

  D Z d L ap max Insert
TK90 VC16 D40 A16 Z03-H 40 3 16 40 15,5 VC.. 16..
TK90 VC16 D50 A22 Z04-H 50 4 22 40 15,5 VC.. 16..
TK90 VC16 D63 A22 Z05-H 63 5 22 40 15,5 VC.. 16..
TK90 VC22 D50 A22 Z04-H 50 4 22 50 21,5 VC.. 22..
TK90 VC22 D63 A22 Z05-H 63 5 22 50 21,5 VC.. 22..
TK90 VC22 D80 A27 Z05-H 80 5 27 50 21,5 VC.. 22..

These Mills are only for VC16.. or VC22..!! VC16.. inserts are to be used preferally with R0,8 or R1,2.
