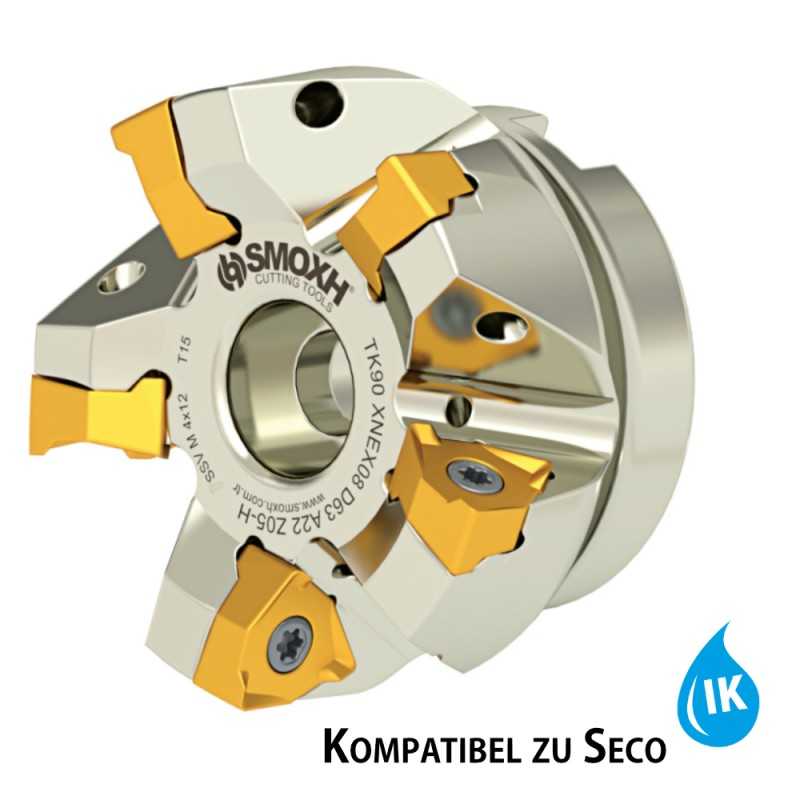

| Mill typ | Shoulder Mill |
| Insert | SECO XOMX / XOEX 1204.... |
| Packaging unit | 1 Pc. |
with cooling holes

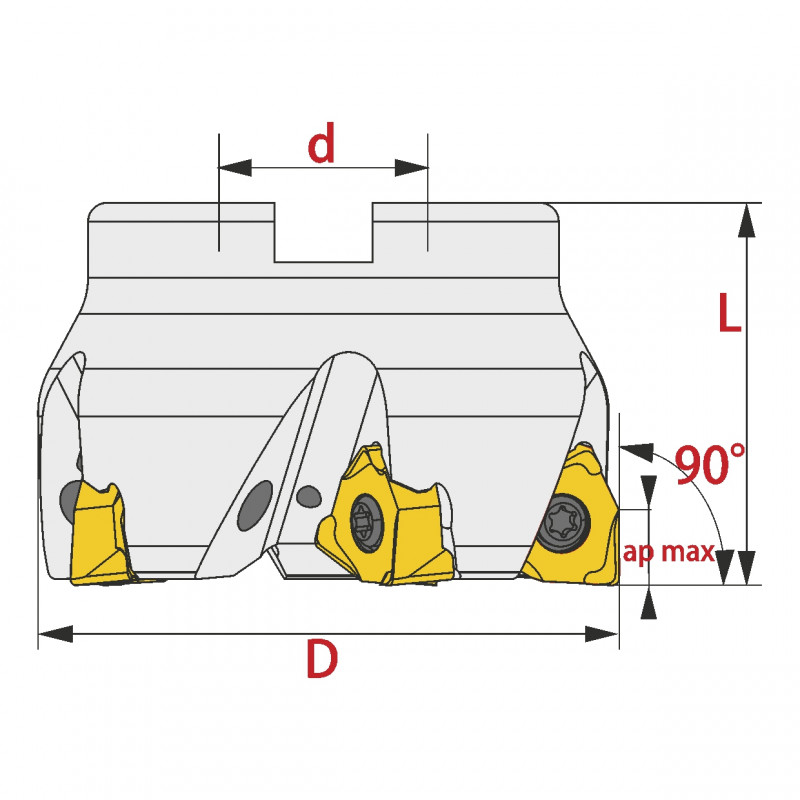

| Art. Nr. | D | Z | d | L | ap max | Insert | Screw | |
| TK90 XNEX08 D050 A22 Z04-H | SM28524 | 50 | 4 | 22 | 40 | 7,5 | XNEX 0806.. | SSV M4x12 |
| TK90 XNEX08 D063 A22 Z05-H | SM28517 | 63 | 5 | 22 | 40 | 7,5 | XNEX 0806.. | SSV M4x12 |
| TK90 XNEX08 D080 A27 Z07-H | SM28500 | 80 | 7 | 27 | 50 | 7,5 | XNEX 0806.. | SSV M4x12 |
| TK90 XNEX08 D100 A32 Z08-H | SM32316 | 100 | 8 | 32 | 50 | 7,5 | XNEX 0806.. | SSV M4x12 |
| Mill typ | Shoulder Mill |
| Insert | SECO XOMX / XOEX 1204.... |
| Packaging unit | 1 Pc. |
with cooling holes

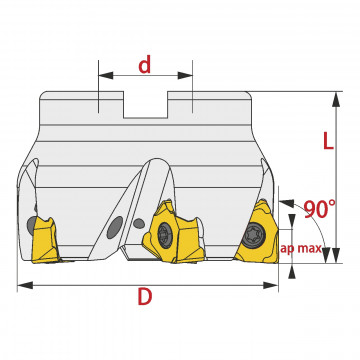

| Art. Nr. | D | Z | d | L | ap max | Inserts | |
| TK90 XNEX08 D050 A22 Z04-H | SM28524 | 50 | 4 | 22 | 40 | 7,5 | XNEX 0806.. |
| TK90 XNEX08 D063 A22 Z05-H | SM28517 | 63 | 5 | 22 | 40 | 7,5 | XNEX 0806.. |
| TK90 XNEX08 D080 A27 Z07-H | SM28500 | 80 | 7 | 27 | 50 | 7,5 | XNEX 0806.. |
| TK90 XNEX08 D100 A32 Z08-H | SM32316 | 100 | 8 | 32 | 50 | 7,5 | XNEX 0806.. |
| Shape | XNEX |
| Processing | High Feed |
| Workpiece Material | Steel and Stainless Steel |
| Grade | RT330 = PVD-coated P15-P25 and M10-M25 for universal use in steel and stainless steel |
| Cutting edges | 6 |
| Packaging unit | 10 Pc. |
| IC | L | S | a | r | |
| XNEX 080608-M13 RT330 | 12,48 | 7,50 | 6,45 | 1,3 | 0,8 |
| Screw Type | Torx |
| Head Size | T15 |
| Torque | 4,3 Nm |
| Packaging unit | 1 piece |
| Mill typ | Side Mill 90° |
| Insert | SECO XOMX / XOEX 1204.... |
| Packaging unit | 1 Pc. |
With cooling holes
Compatible to SECO XOMX / XOEX 1204.... Inserts.
| D | Z | d | L | l | a | Insert | |
| ST90 XO12 D20 W20 L120 Z02-H |
20 | 2 | 20 | 120 | 30 | 11 | SECO XOMX/XOEX 1204.. |
| ST90 XO12 D20 W20 L150 Z02-H |
20 | 2 | 20 | 150 | 40 | 11 | SECO XOMX/XOEX 1204.. |
| ST90 XO12 D25 W25 L150 Z03-H |
25 | 3 | 25 | 150 | 40 | 11 | SECO XOMX/XOEX 1204.. |
| ST90 XO12 D32 W32 L150 Z04-H |
32 | 4 | 32 | 150 | 40 | 11 | SECO XOMX/XOEX 1204.. |
| Mill typ | Shoulder Mill |
| Insert | SECO XOMX / XOEX 1204.... |
| Packaging unit | 1 Pc. |
with cooling holes
| D | Z | d | L | a | Insert | |
| TK90 XO12 D040 A16 Z05-H | 40 | 5 | 16 | 40 | 11 | SECO XOMX/XOEX 1204... |
| TK90 XO12 D050 A22 Z06-H | 50 | 6 | 22 | 40 | 11 | SECO XOMX/XOEX 1204... |
| TK90 XO12 D063 A22 Z08-H | 63 | 8 | 22 | 40 | 11 | SECO XOMX/XOEX 1204... |
| TK90 XO12 D080 A27 Z09-H | 80 | 9 | 27 | 50 | 11 | SECO XOMX/XOEX 1204... |
| TK90 XO12 D100 A32 Z11-H | 100 | 11 | 32 | 50 | 11 | SECO XOMX/XOEX 1204... |
Compatible to inserts SECO XOMX / XOEX 1204...
| Shape | XOMX |
| Workpiece Materials |
RT330: Steel and Stainless Steel RT350: Steel and Stainless Steel |
| Grades |
RT330 = PVD-coated P15-P25 and M10-M25 for universal use in steel and stainless steel RT350 = |
| Packaging unit | 10 Pc. |
| L | W | s | r | |
| XOMX 120408-ME13 RT330 | 7,28 | 8,2 | 5,07 | 0,8 |
| XOMX 120431-ME13 RT350 | 7,28 | 8,2 | 5,07 | 3,1 |
| Shape | XNEX |
| Processing | High Feed |
| Workpiece Material | Steel and Stainless Steel |
| Grade | RT330 = PVD-coated P15-P25 and M10-M25 for universal use in steel and stainless steel |
| Cutting edges | 6 |
| Packaging unit | 10 Pc. |
| IC | L | S | a | r | |
| XNEX 080608-M13 RT330 | 12,48 | 7,50 | 6,45 | 1,3 | 0,8 |
| Shape | OFKT |
| Workpiece Materials |
RT300: Steel & Stainless Steel RT150K: Cast Iron RT100: NF-Materials |
| Grades |
RT300: PVD-coated P15-P25 and M10-M25 RT150K: CVD-coated K10-K20 carbide for cast machining RT100 = Uncoated K10-K15 carbide |
| Packaging unit | 10 pc. |
| L | I.C | s | d | r | |
| OFKT 05T3-PM RT300 | 5,26 | 12,7 | 3,97 | 4,4 | 0,5 |
| OFKT 05T3-PM RT150K | 5,26 | 12,7 | 3,97 | 4,4 | 0,5 |
| OFKT 05T3-ALZ RT100 | 5,26 | 12,7 | 3,97 | 4,4 | 0,5 |
