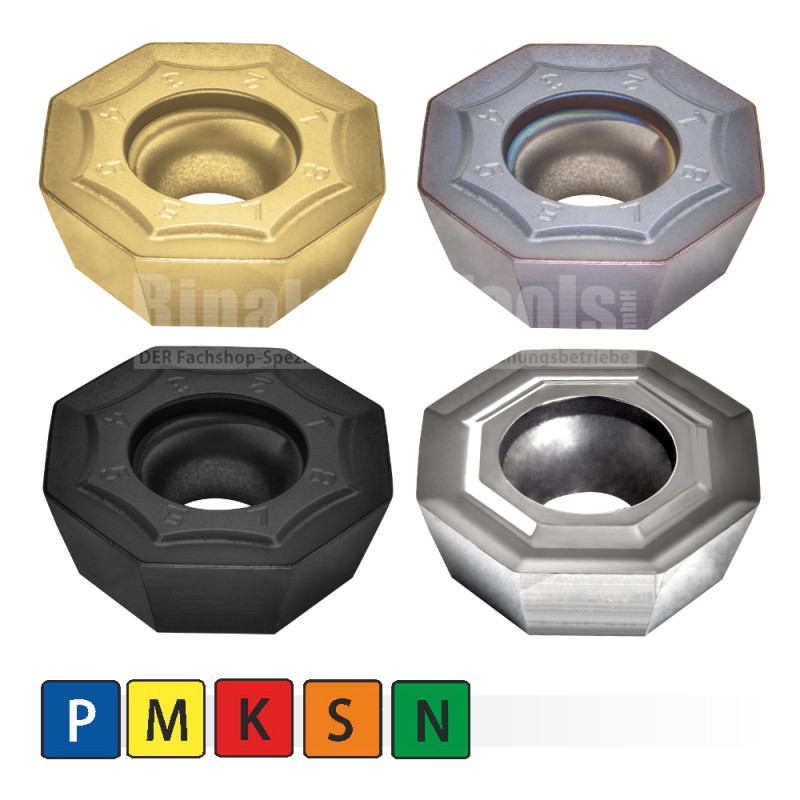

Milling Insert - ODHT 060508
€7.70
Tax excluded
VPE = 10 st.
RT305H = High-Performance PVD coating for efficient use in stainless steel and superalloy.
RT250X = PVD multilayer coated P10-P30 and M10-M30 carbide for universal use in steel and stainless steel
RT150K = CVD-coated K10-K20 carbide for casting machining
RT100 = Uncoated K10-K15 carbide for ALU and plastics
Compatible with WALTER ODHT 0605... System

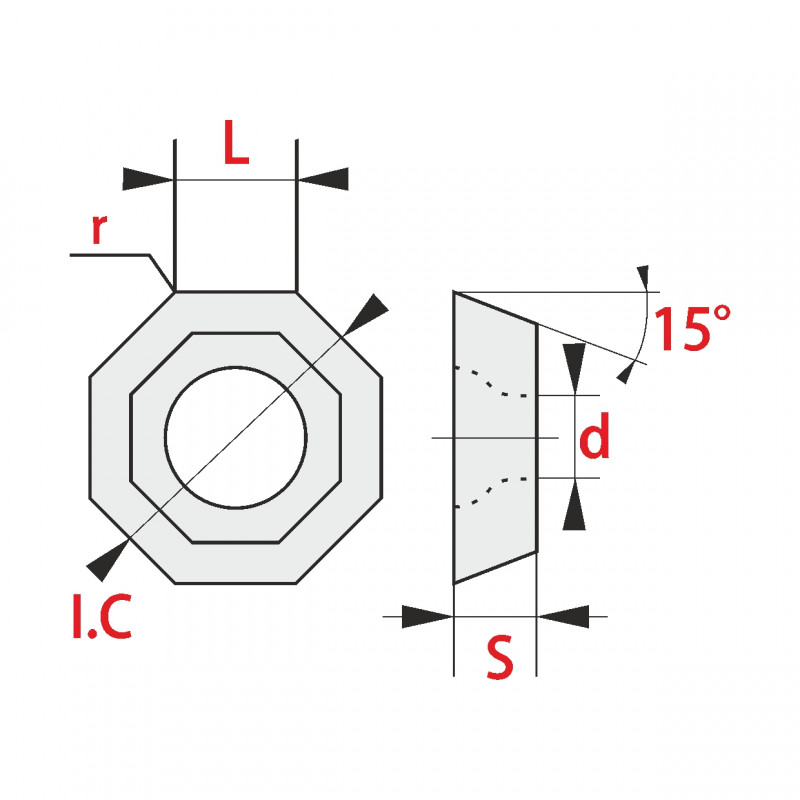

| Item Nr. | L | I.C. | S | d | Scope of application | |

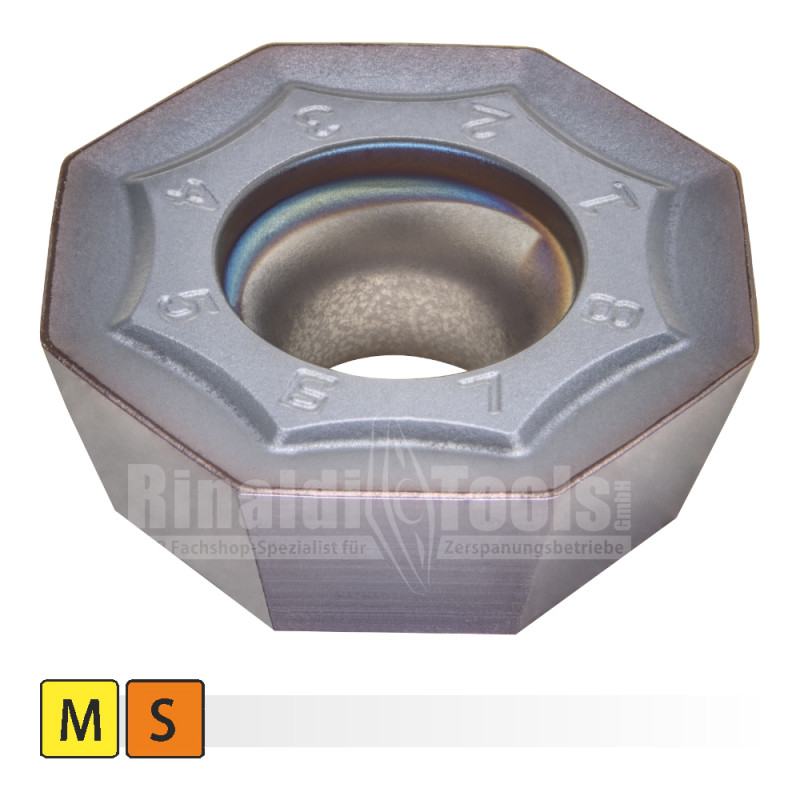

| ODHT 060508-M RT305H | 2651332 | 6,50 | 15,875 | 5,65 | 5,4 | Stainless Steel & Superalloy |
| ODHT 060508-M RT250X | 2651333 | 6,50 | 15,875 | 5,65 | 5,4 | Steel & Stainless Steel |
| ODHT 060508-M RT150K | 2651334 | 6,50 | 15,875 | 5,65 | 5,4 | Cast Iron |
| ODHT 060508-ALZ RT100 | 2651331 | 6,50 | 15,875 | 5,65 | 5,4 | ALU / Plastic / NE-Materials |
2651332
VPE = 10 st.
RT305H = High-Performance PVD coating for efficient use in stainless steel and superalloy.
RT250X = PVD multilayer coated P10-P30 and M10-M30 carbide for universal use in steel and stainless steel
RT150K = CVD-coated K10-K20 carbide for casting machining
RT100 = Uncoated K10-K15 carbide for ALU and plastics
Compatible with WALTER ODHT 0605... System
| L | I.C. | S | d1 | Scope of application | |
| ODHT 060508-M RT305H | 6,50 | 15,875 | 5,65 | 5,4 | Stainless Steel & Superalloy |
| ODHT 060508-M RT250X | 6,50 | 15,875 | 5,65 | 5,4 | Steel & Stainless Steel |
| ODHT 060508-M RT150K | 6,50 | 15,875 | 5,65 | 5,4 | Cast Iron |
| ODHT 060508-ALZ RT100 | 6,50 | 15,875 | 5,65 | 5,4 | ALU / Plastic / NE-Materials |
