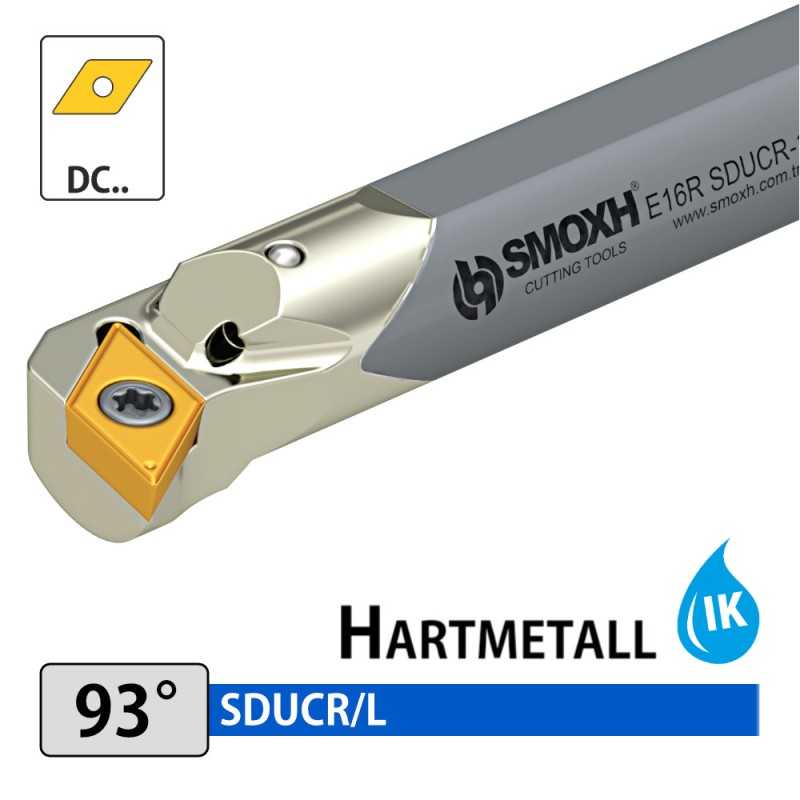

Solid Carbide Internal Tool Holder - E-SDUCR/L (93°)
€129.00
Tax excluded
| Boring Bar | E-SDUCR/L |
| Setting Angle | 93° |
| Insert | DC.. |

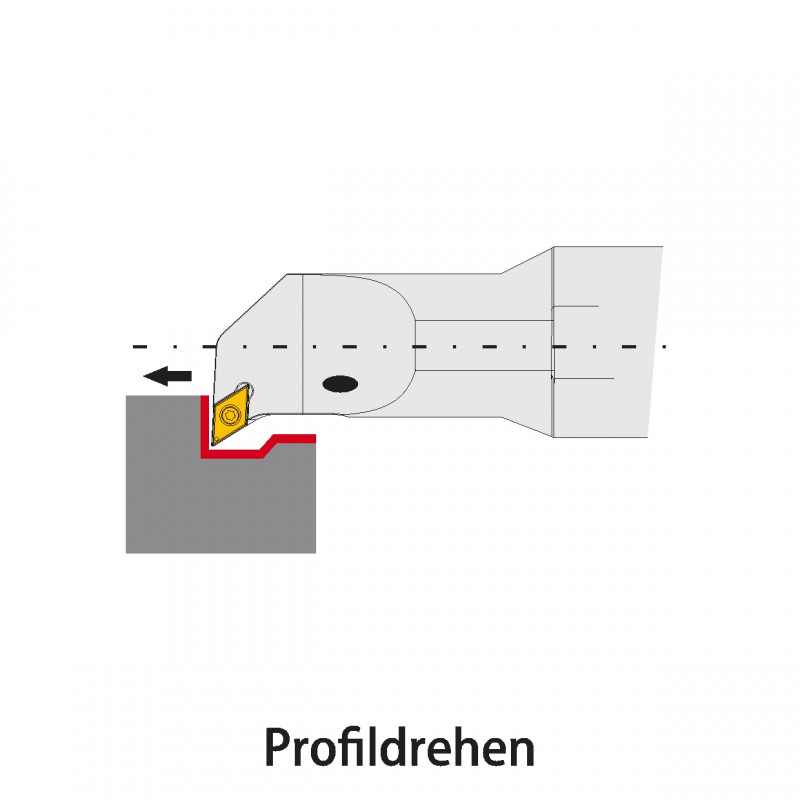

| Main application | Profile turning |
| Clamping | Screw Clamp |
| Cooling | With internal coolant feed |
| Packaging unit | 1 Pc. |
Solid carbide boring bar
Solid carbide tool carriers increase stability considerably.
The carbide boring bar allows a projection length of up to 6xD by reducing vibrations.
Precision and surface quality are also improved.

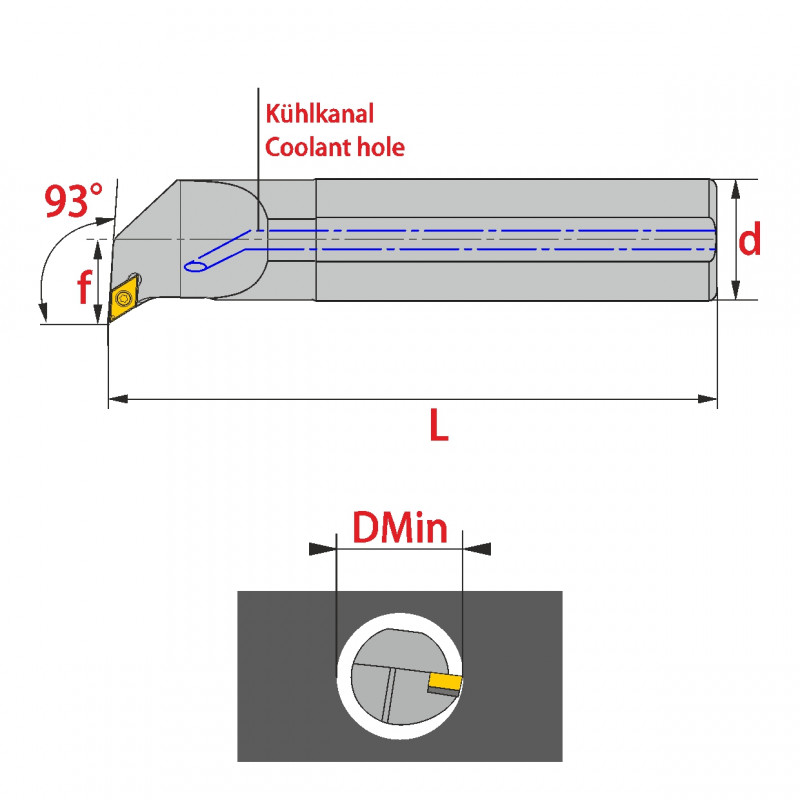

| Art. Nr. | d | L | f | Dmin | Wendeplatte | Schraube | |
| E10M SDUCR-07 | SM59771 | 10 | 150 | 08 | ≥13 | DCG./DCM. 07.. |
SSV M2,5x6 |
| E10M SDUCL-07 | SM59818 | 10 | 150 | 08 | ≥13 | DCG./DCM. 07.. |
SSV M2,5x6 |
| E12Q SDUCR-07 | SM59788 | 12 | 180 | 10 | ≥16 | DCG./DCM. 07.. |
SSV M2,5x6 |
| E12Q SDUCL-07 | SM59825 | 12 | 180 | 10 | ≥16 | DCG./DCM. 07.. |
SSV M2,5x6 |
| E16R SDUCR-11 | SM59795 | 16 | 200 | 13 | ≥21 | DCG./DCM. 11.. |
SSV M3,5x10 |
| E16R SDUCL-11 | SM59832 | 16 | 200 | 13 | ≥21 | DCG./DCM. 11.. |
SSV M3,5x10 |
| E20S SDUCR-11 | SM59801 | 20 | 250 | 15 | ≥25 | DCG./DCM. 11.. |
SSV M3,5x10 |
| E20S SDUCL-11 | SM59849 | 20 | 250 | 15 | ≥25 | DCG./DCM. 11.. |
SSV M3,5x10 |
| Boring Bar | E-SDUCR/L |
| Setting Angle | 93° |
| Insert | DC.. |
| Main application | Profile turning |
| Clamping | Screw Clamp |
| Cooling | With internal coolant feed |
| Packaging unit | 1 Pc. |
Solid carbide boring bar
Solid carbide tool carriers increase stability considerably.
The carbide boring bar allows a projection length of up to 6xD by reducing vibrations.
Precision and surface quality are also improved.
| d | L | f | Dmin | |
| E10M SDUCR/L-07 | 10 | 150 | 08 | ≥13 |
| E12Q SDUCR/L-07 | 12 | 180 | 10 | ≥16 |
| E16R SDUCR/L-11 | 16 | 200 | 13 | ≥21 |
| E20S SDUCR/L-11 | 20 | 250 | 15 | ≥25 |
